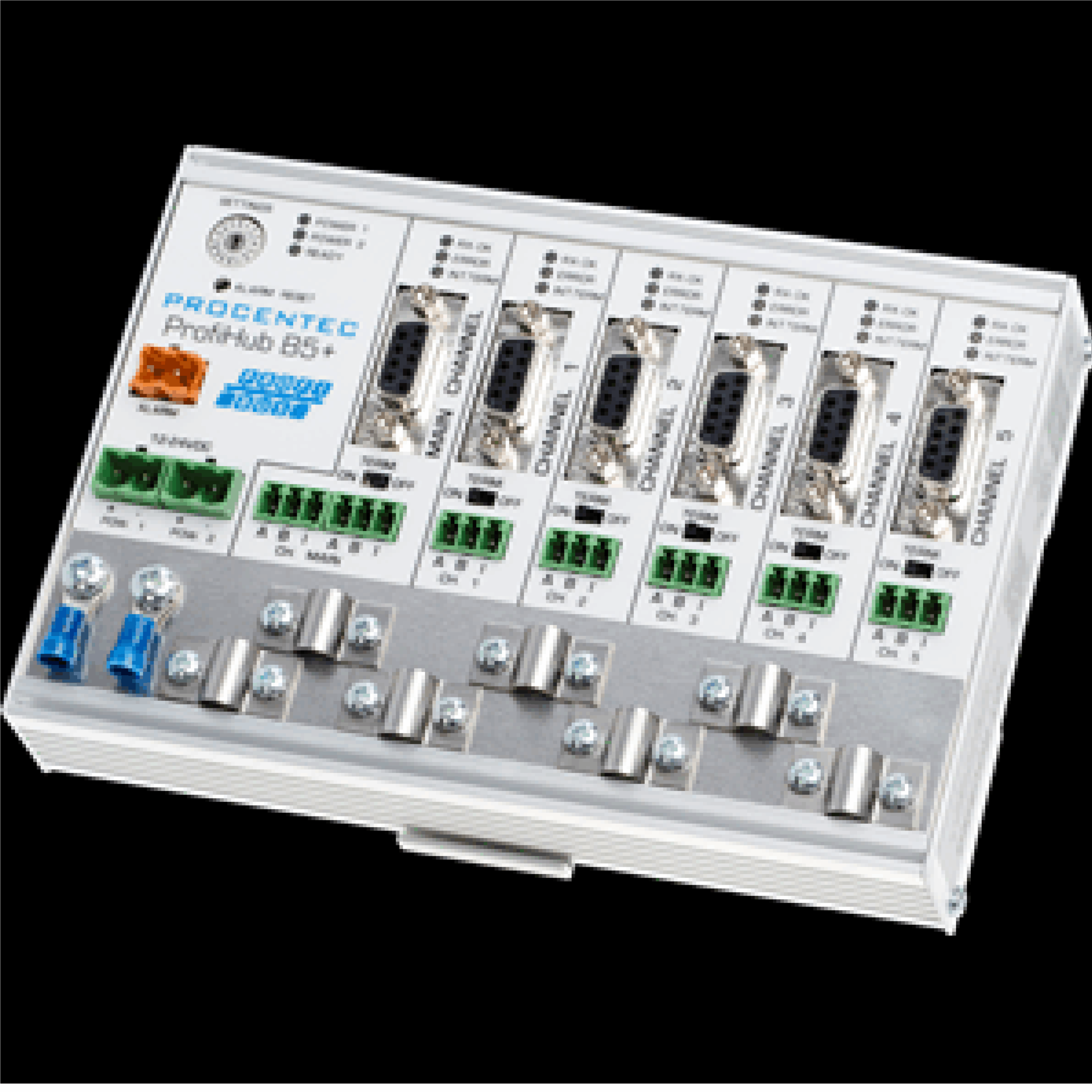

Tên sản phẩm: ProfiHub B5+R

Model: 17020R

Nhà sản xuất: Procentec Vietnam

Xuất xứ: EU

Nhà phân phối : Song Thành Công Việt Nam

Information:

ProfiHub B5+R-17020R- Procentec Vietnam-Song Thành Công Việt Nam

Due to the demands for high-speed networks, PROFIBUS DP must comply with strict guidelines concerning spur lines.

The ProfiHub B5+R is the perfect cost-efficient solution to bridge user’s requirements and create reliable star networks.

It is an essential component to obtain better control during maintenance and upgrading of the network.

Note: B5+R replaces the standard PROCENTEC B5 unit, providing additional functionality with no physical design changes. The ProfiHub B5+R has the following unique features:

• DB9 connector as well as a screw connector
• Switchable termination on each segment
• Backbone repeater

As an economic solution, the B5+R saves costs through the reduction of traditional PROFIBUS repeaters.

This product is equipped with 5 galvanically isolated transparent repeaters on a single unit (offering 6 segments).

Each segment can handle 31 devices and a cable length equal to the main bus.

To save costs on plugs and offer flexibility, it contains screw terminals as well as DB9 connectors.

The DB9 connectors are also perfect measurement points for ProfiTrace to quickly measure all segments.

Termination for each segment is on-board and switchable.

For PROFIBUS network designs, the ProfiHub B5+R offers a reliable and robust backbone solution with robust message checking and selectable redundancy on communication and power supply.

The extensive monitoring of messages in combination with redundancy on the communication and voltage, makes the ProfiHub the perfect access port for network components.

An alarm contact is linked to events based on the status of the power supply and the bus redundancy if this is enabled. Unlimited cascading of repeaters is possible with 1200 meter  spur lines.
