Tên: Cảm biến lực căng

Model: RMGZ100C.10

Nhà sản xuất: FMS Vietnam

Xuất xứ: Switzerland

Nhà phân phối: STC Việt Nam

Thông tin sản phẩm:

3 key operation with LCD, simple procedures for offset and calibration

Simple operation, quick configuration

Detachable terminal blocks, standardized current and power outputs

Simple start-up and integration

14 bit resolution, cycle time 1 ms

Highly precise results, for high process speeds

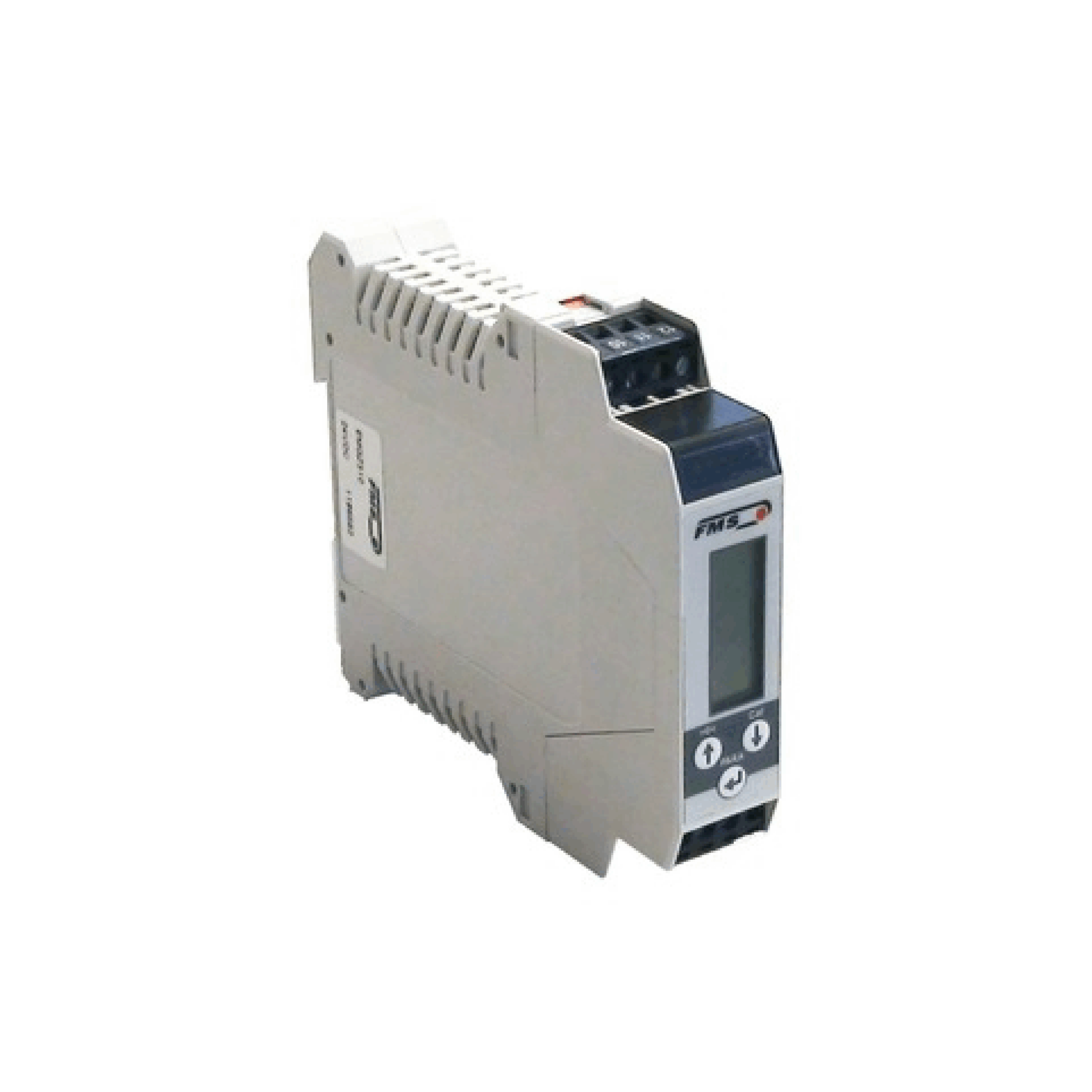

EMGZ310-Series The EMGZ310 is a compact, digital strain gauge amplifier. It is designed for applications that involve the measurement or control of web tension in coating, laminating, printing, extrusion, or other similar roll to roll processes. The quick and flexible device configuration is straightforward with the extensive range of parameters being set using the three easily accessible keys and the integrated LCD.



Funktional description The mV signal generated by the force sensors is amplified and fed directly to a high-resolution A/D-converter. Both voltage and current outputs are provided as standard. Functions like signal filtering, automatic offset compensation, and gain calculation are all part of the versatility of the EMGZ310 series digital amplifier



Thông số kỹ thuật

Cảm biến lực căng- RMGZ100C.10- FMS Vietnam

Number of channels	1 channel for 2 sensors
Cycle time	1 ms
Power supply for force sensor	5 VDC, highly stable
Sensor feedback signal	± 9 mV (max. 11.25 mV); with option .V05 ± 2.5 mV
Voltage output	± 10 VDC, min. 1000 Ω, 12 bit
Current output	0/4 to 20 mA, max. 500 Ω, 12 bit
Resolution A/D converter	± 10000 Digit (14 Bit)
Measuring error	< 0.05 % FS
Configuration	3 keys, 4-digit LCD
Protection class	IP 20
Power supply	24 VDC (18 to 36 VDC)
Power consumption	3 W
Temperature range	–10 to +50 °C (14 to 122 °F)
Weight	370 g (0.82 lbs)

Các model sản phẩm

FMS Vietnam	Model: RMGZ100C.10 Force sensors for pulleys, static or rotating
FMS Vietnam	Model: EMGZ310 Tension Digital Measure Amplifiers without Bluetooth function add on
