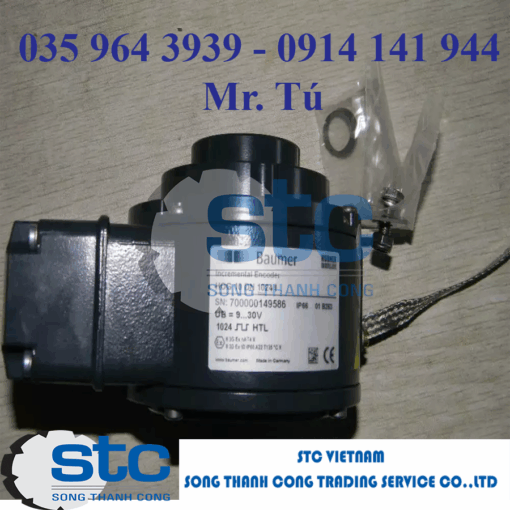

Tên: ATD 2A A 4 Y 7 360A IS D2SR12 S 12 IP65 – 11116309 – Bộ mã hóa

Model: ATD 2A A 4 Y 7 360A IS D2SR12 S 12 IP65 – 11116309

Nhà sản xuất: Baumer

Đại lý phan phối: Song Thành Công

Thông tin sản phẩm:

• Xem thêm thông tin sản phẩm tại đây
• Voltage supply : +UB= 12…30 VDC (IS-/US-version)
• Reverse polarity protection: Yes
• Consumption w/o load: ≤50 mA (24 VDC)
• Interface: Analog (4…20 mA or 0…10 V)
• Load resistor: ≥1 kΩ (recommended 10 kΩ) / voltage output
• ≤500 Ω (recommended 470 Ω) / current output
• Function: Singleturn
  • Multiturn
• Measuring range
• 90°, 180°, 360°
• 2, 4, 8, 16 revolutions
• Resolution

• 16 bit

• Steps per revolution
• 16384 / 14 bit
• Number of revolutions
• 16 / 4 bit
• Sensing method
• Optical (singleturn)
• Magnetical (multiturn)
• Updating values
• ≤130 µs
• Code sequence
• CW: ascending values with clockwise sense of rotation; looking at mounting surface
• Output stages
• Voltage output (short-circuit proof)
• Current output (short-circuit proof)
• Interference immunity
• EN 61000-6-2
• Emitted interference
• EN 61000-6-3
