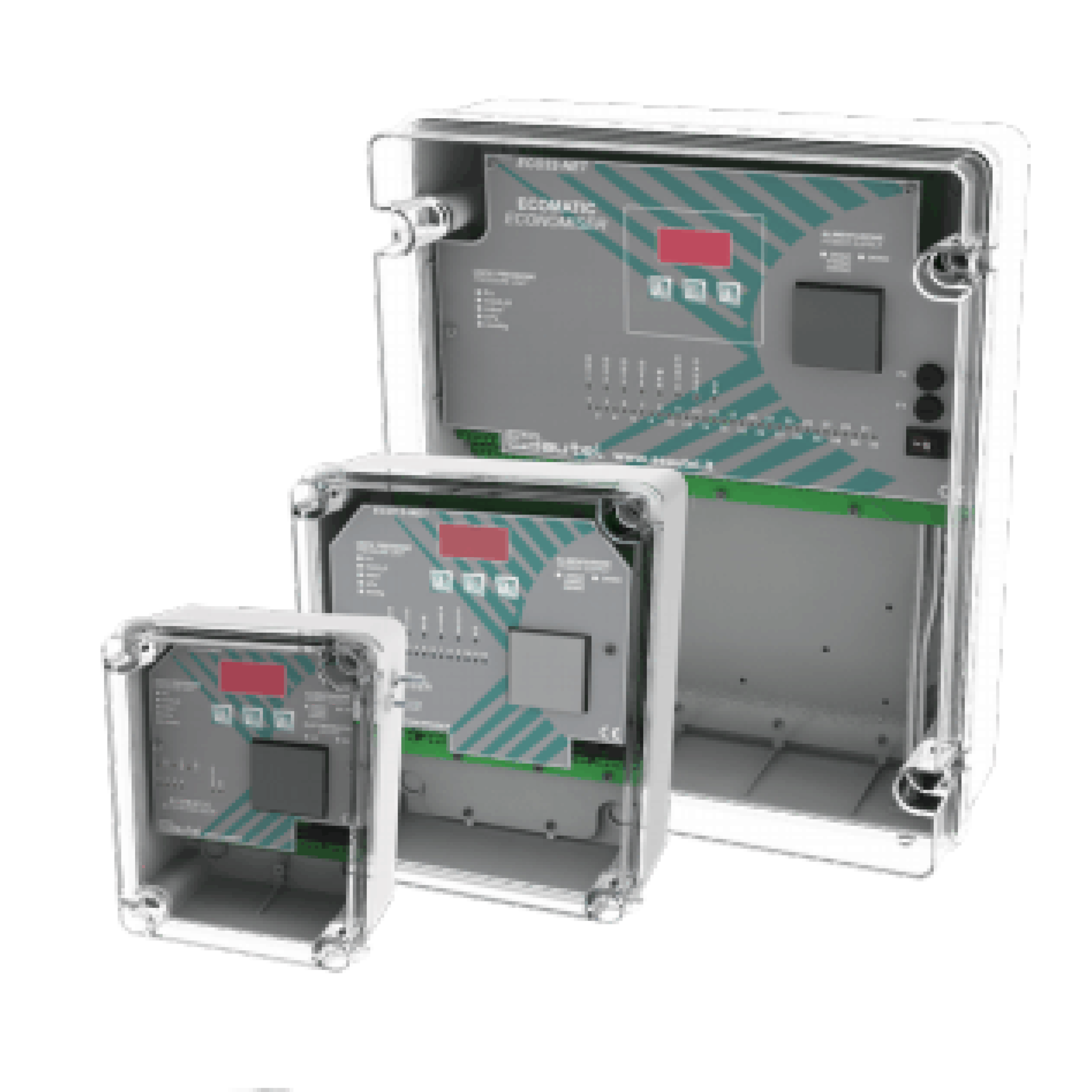

Tên: Bộ điều khiển và định thời gian Auter

Model: ECONET-12

Nhà sản xuất: Autel

Nhà phân phối: Song Thành Công VietNam

Information:

Classic Method, state-of-the-art performances: advanced functions  to manage the cleaning cycle, large number of parameters and management via serial line.

Economisers in the ECOMATIC-NET range are digital sequential timers with built-in differential pressure switches and are able to control from 4 to 96 solenoid valves respectively.

In all versions there is a display with 3 digit that can display the most important features and it is possible to programme the various and customizable internal parameters with the 3 buttons on the panel.

The states and functions are displayed by the lighting of LEDs on the front panel of the instrument.

The controllers with AC power supply are able to control both electronic valves with AC input and electronic valves with 24VDC.

Each model is supplied in polycarbonate enclosures with transparent lids and IP56 protection rating.

On demand, the ECOMATIC-NET instruments can be provided of an ACTIVE analogical output proportional to the pressure read by the sensor.

The Ecomatic NET can be supplied in Atex Zone 22 3D version and can be equipped with a RS 485 serial output for communication with PC or PLC via MODBUS.

The input and relay outputs can be programmed with various functions and the instrument, if put into communication with an Autel triboelectric probe, is able to detect in which row is present the broken bag.

Bộ điều khiển và định thời gian Autel- ECONET-12

Protection	Protection Level	IP 56
Temperature	Working temperature	-10 – 50˚C
Power supply	Power  supply range	24Vac/115Vac/230Vac
	Power consumption	100W
Display	Display type	7-segment display
	Resolution	3 digits
	Display color	Red
Input	Digital Inputs	3-4 opto-isolated inputs
	Pressure Input	ok
	Pressure range	-99/+999dPa, -99/+999mmH2O, – 9.9/+99.9mBar, -0.99/+9.99kPa, – 7.5/+75.0mmHg
Output	Relay Outputs (nr)	1-2
	4-20mA Output	optional
	Relay Output Power	2A/115Vac
	Coils Control Voltage	24Vac, 115Vac, 230Vac or 24Vdc
