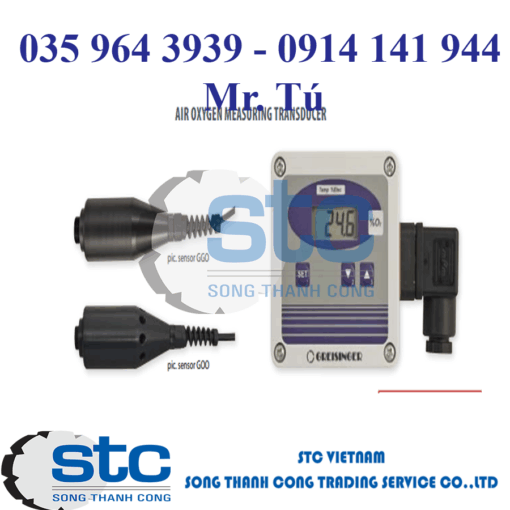

Tên: OXY3690MP-0-GOO-A1-L01 – Máy đo Oxy

Model: OXY3690MP-0-GOO-A1-L01

Nhà sản xuất: Greisinger

Đại lý phân phối: Song Thành Công



Thông tin sản phẩm:

Xem them thông tin sản phẩm tại đây



• Measuring ranges: Oxygen concentration: 0.0 … 100.0 % O2 (gaseous)
• OXY 3690 MP: recommended range 0.2 … 35.0 vol.% O2 (reduced precision outside)
• OXY 3690 MP-LO: also suitable for values ≤0.2 vol.% O2
• Temperature: -20.0 … 50.0 °C
• Accuracy device (at nominal temperature 25 °C): Oxygen: ±0.1 % ±1 digit
• Temperature: ±0.1 °C ±1 digit
• Output signal (O2 only): 4 … 20 mA (2-wire – standard), 0 … 10 V (3-wire – option)
• Electric isolation: input electrically isolated
• Auxiliary energy: 12 … 30 V DC (at output 4 … 20 mA) 18 … 30 V DC (at output 0 … 10 V – option)
• impedance (at 4 … 20 mA): RA [Ω] ≤ (Uv [V] – 12 V) / 0.02 A
• Permissible load (at 0 … 10 Volt): RL >3000 Ω
• Working condition: 0 … +50 °C, 0 … 95 % RH (non-condensing)
• Storage temperature: -20 … +70 °C
• Reverse voltage protection: 50 V permanently
• Display: approx. 10 mm high, 4-digit LCD-display
• Housing: ABS (IP65 – with the exception of sensor plug)
• Dimensions: 82 x 80 x 55 mm (without elbow-type plug and sensor plug)
• Electric connection: elbow-type plug acc. to EN 175301-803/A (IP65), max. wire cross section: 1.5 mm², wire diameter from 4.5 … 7 mm
• Sensor connection: 5-pin jack connector, screwable
• Calibration: 1-point calibration in atmospheric air
• Air pressure compensation: 500 … 2000 hPa abs., manually input
