S-221K-01-1-TPC1-ASP – Đầu dò nhiệt độ – Anritsu

NGUYỄN VĂN TÚ

PHONE: 035 964 3939 (ZALO) – 0914 141 944

EMAIL: vantu@songthanhcong.com

Cung cấp sản phẩm chính hãng, giá cạnh tranh !

S-221K-01-1-TPC1-ASP – Đầu dò nhiệt độ – Anritsu – Song Thành Công

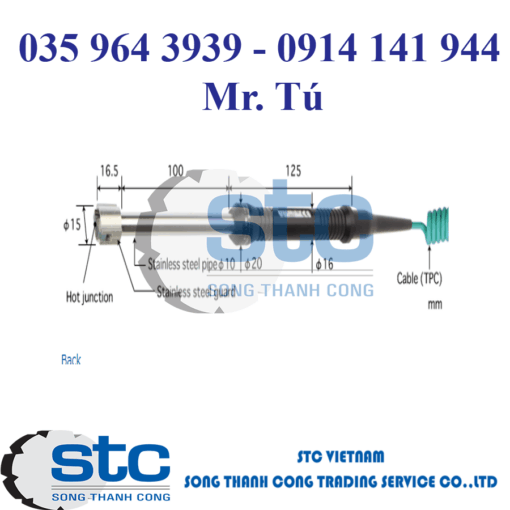

Tên: S-221K-01-1-TPC1-ASP – Đầu dò nhiệt độ

Model: S-221K-01-1-TPC1-ASP

Nhà sản xuất: Anritsu

Đại lý phân phối: Song Thành Công

range
-50 to 800°C
Tolerance
-50°C ≦ t < 333°C : ±2.5°C
333°C ≦ t ≦ 500°C : ±(0.0075 × | t |)°C
500°C < t ≦ 700°C : ±(0.015 × | t |)°C
700°C < t ≦ 800°C : ±(0.02 × | t |)°C
* t : Measured temperature
Response time
1 s
Durability
More than 60,000 contacts (at 800°C surface)
Calibration points of test report
100 , 300 , 500°C
allowable tilt
±8°
Cable type and length
Type E : TPC-E1m
Type K : TPC-K 1m
Plug
Type E : ANP-E-M-L
Type K : ANP-K-M-L
