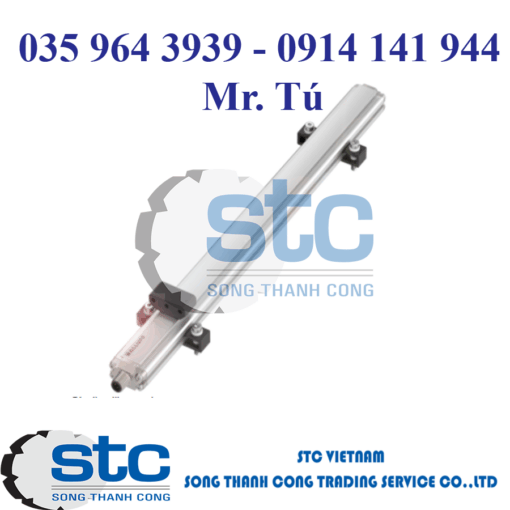

Tên: BTL6-A500-M0600-PF-S115 – Cảm biến vị trí

Model: BTL6-A500-M0600-PF-S115

Nhà sản xuất: Balluff

Đại lý phân phối: Song Thành Công

Thông tin sản phẩm:

Xem thêm thông tin sản phẩm tại đây



• Style
• Profile series
• Mounting part
• Mounting clamps
• Housing material
• Aluminum, Anodized
• Magnets, number max.
• 1
• Connection
• Connector, M12x1, 8-pin
• Analog output
• Analog, voltage 0…10 V
• Measuring range

• 600 mm

• Sampling frequency max.
• 2000 Hz
• Resolution
• ≤ 350 µV
• Non-linearity max.
• ±0.04 %FS
• Repeat accuracy
• ± 0.002 %FS
• Operating voltage Ub
• ..30 VDC
• Ambient temperature
• -25…70 °C
• IP rating
• IP67
• Approval/Conformity
• CE, cULus, EAC, WEEE
