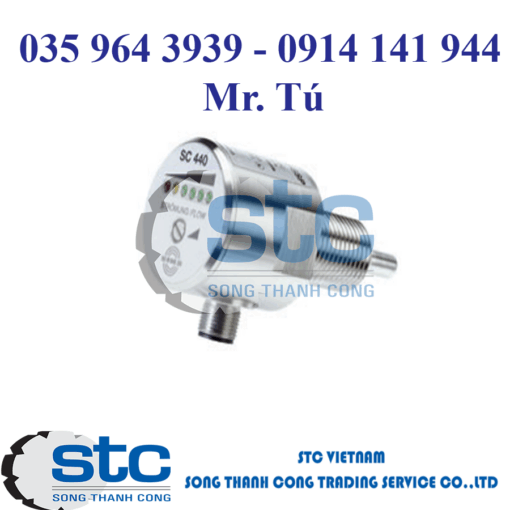

Tên: SC 440-A4-GSP – Cảm biến lưu lượng

Model: SC 440-A4-GSP

Nhà sản xuất: EGE Elektronik

Đại lý phân phối: Song Thành Công

Thông tin sản phẩm:

Xem thêm thông tin sản phẩm tại đây



The SC440-A4-GSP from EGE, offers thermodynamic inline flow control without moveable parts, making them robust and not prone to the build up of debris in moving parts.

This controller is idea for fluids such as water, glycol mixtures and certain chemicals, complete with a 30 mm probe, a G1/2 fitting and a 100 bar pressure rating.
Manufactured from stainless steel, with a small footproint, the SC440 is robust and dependable and is suitable for many industrial installations that have space limited.

Applications include flow rate monitoring in cooling systems and pump protection. The built in LED array provides a graphical representation of the system pressure during operation.

Thermodynamic Inline Flow Control Sensors

Sensor length 30 mm
PNP ? normally open
Robust stainless steel housing AIS 316 Ti
G1/2 thread
LED array flow display
Supply voltage 24 Vdc
Current consumption <70 mA
Switching current <200 mA
Start-up time typical ? 8 seconds
Reaction time typical 2 seconds
Compressive strength 100 bar
IP67 protection rating
M12 connection
